Understanding Different Types of Fiber Optic Cables
Fiber optic cables have revolutionized the telecommunications industry. These cables use light to transmit data, enabling faster speeds and greater bandwidth compared to traditional copper cabling. The global optical fiber cable market is projected to reach over $13 billion by 2028, reflecting a significant shift from copper to fiber optics. Understanding different types of fiber optic cables, including outdoor singlemode 2mm 3mm multimode om2 om3 om4 om5 Simplex fiber patch cable ftth patch cable pigtail, is crucial for selecting the right solution for specific applications. Fiber optic cables offer enhanced reliability, maximized transmission strength, and improved cybersecurity, making them indispensable in modern networking.
Standard Fiber Optic Cables
Single-Mode Fiber (SMF)
Characteristics
Single-Mode Fiber (SMF) features a small diametral core, typically around 8 to 10 micrometers. This narrow core allows only one mode of light to propagate, which minimizes modal dispersion. The design ensures high bandwidth capabilities, making SMF ideal for long-distance communication. The core's small size also reduces signal attenuation, enhancing the efficiency of data transmission over extensive distances.
Applications
Single-Mode Fiber (SMF) is commonly used in telecommunications and cable television networks. The high bandwidth and low attenuation characteristics make SMF suitable for long-haul and metropolitan area networks. SMF is also prevalent in undersea cable systems, where long-distance data transmission is critical. Data centers and enterprise networks often deploy SMF to ensure reliable and high-speed connectivity.
Multi-Mode Fiber (MMF)
Characteristics
Multi-Mode Fiber (MMF) has a larger diametral core, usually around 50 to 62.5 micrometers. This larger core allows multiple modes of light to propagate simultaneously. The design increases modal dispersion, which can limit the effective transmission distance. However, MMF supports higher data rates over shorter distances, making it suitable for specific applications. MMF is available in various grades, including OM1, OM2, OM3, OM4, and OM5, each offering different performance levels.
Applications
Multi-Mode Fiber (MMF) is widely used in local area networks (LANs) and data centers. The ability to support high data rates over short distances makes MMF ideal for intra-building connections. MMF is also used in campus networks and storage area networks (SANs). The different grades of MMF, such as OM2, OM3, OM4, and OM5, provide flexibility in choosing the right fiber for specific bandwidth and distance requirements.
FTTH Fiber Optic Cables
Drop Cables
Characteristics
Drop cables play a crucial role in Fiber to the Home (FTTH) systems. These cables typically feature a 2-core design with steel wire as a strength member. The construction provides excellent crush and tensile strength, ensuring durability and reliability. The cables often come with a low smoke halogen-free flame retardant polyolefin sheath, making them suitable for indoor use. The butterfly drop cable design includes metal reinforcement, enhancing its robustness.
Applications
Drop cables are primarily used as access cables in FTTH systems. They connect customer outlets to Optical Network Terminals (ONT) equipment. The robust design ensures reliable data transmission from the service provider to the end-user. These cables are ideal for residential and commercial installations, providing high-speed internet and other telecommunications services directly to homes and offices.
Distribution Cables
Characteristics
Distribution cables in FTTH networks serve as the backbone for data transmission. These cables often contain multiple fibers bundled together, providing higher capacity and redundancy. The design includes protective layers that shield the fibers from environmental factors such as moisture and physical damage. Distribution cables can be used both indoors and outdoors, offering versatility in deployment.
Applications
Distribution cables are used to connect various network points within an FTTH system. They link central offices to local distribution points, ensuring efficient data flow across the network. These cables support high-bandwidth applications, making them suitable for urban and suburban areas. The robust construction allows for installation in challenging environments, including underground and aerial setups.
Fiber Optic Ribbon Cables
Characteristics
Fiber optic ribbon cables consist of multiple optical fibers arranged in a flat, ribbon-like configuration. This design allows for high fiber density within a compact form factor. The ribbon structure simplifies mass fusion splicing, making installation and maintenance more efficient. Each fiber within the ribbon maintains precise alignment, ensuring consistent performance across all fibers.
The construction of fiber optic ribbon cables includes protective coatings and strength members. These elements provide resistance to environmental factors such as moisture and physical stress. The cables often feature a flame-retardant jacket, enhancing safety in indoor applications. The high fiber count and compact design make ribbon cables ideal for space-constrained environments.
Applications
Fiber optic ribbon cables find extensive use in data centers and telecommunications networks. The high fiber density supports large-scale data transmission, meeting the demands of modern networking infrastructure. Ribbon cables facilitate rapid deployment and easy scalability, making them suitable for expanding network capacities.
In metropolitan area networks, fiber optic ribbon cables connect central offices to distribution points. The efficient splicing process reduces installation time and costs, ensuring timely network upgrades. The cables also serve in campus networks, providing reliable connectivity between buildings.
Research and development sectors utilize fiber optic ribbon cables for testing and measurement applications. The precise alignment of fibers ensures accurate data collection and analysis. The cables also function as sensors for imaging and illumination, offering versatility in scientific research.
Specialty Fiber Optic Cables
Outdoor Singlemode
2mm and 3mm Cables
Outdoor singlemode cables with 2mm and 3mm diameters offer robust performance in harsh environments. The smaller 2mm cables provide flexibility and ease of installation in tight spaces. The 3mm cables, with their thicker jackets, offer enhanced protection against physical damage. Both types feature UV-resistant and water-blocking materials, ensuring durability in outdoor conditions. The cables maintain low attenuation rates, making them suitable for long-distance data transmission.
Applications
Outdoor singlemode 2mm and 3mm cables serve various applications in telecommunications and networking. These cables are ideal for connecting remote sites in rural areas. The robust construction makes them suitable for aerial installations and underground deployments. Utility companies use these cables to link substations and control centers. The cables also find applications in military and defense communications, where reliability is paramount.
Multimode Cables
OM2, OM3, OM4, OM5
Multimode cables come in different grades, including OM2, OM3, OM4, and OM5. OM2 cables support data rates up to 10 Gbps over distances of 82 meters. OM3 cables extend this capability to 300 meters. OM4 cables further enhance performance, supporting 10 Gbps over 550 meters. OM5 cables, the latest in the series, enable 100 Gbps over 150 meters. Each grade offers specific advantages, catering to varying bandwidth and distance requirements.
Applications
Multimode cables are widely used in data centers and local area networks (LANs). OM2 cables are suitable for short-range connections within buildings. OM3 and OM4 cables support high-speed data transfer between servers and storage systems. OM5 cables, with their advanced capabilities, are ideal for high-performance computing environments. Educational institutions use multimode cables to connect campus buildings, ensuring reliable internet access.

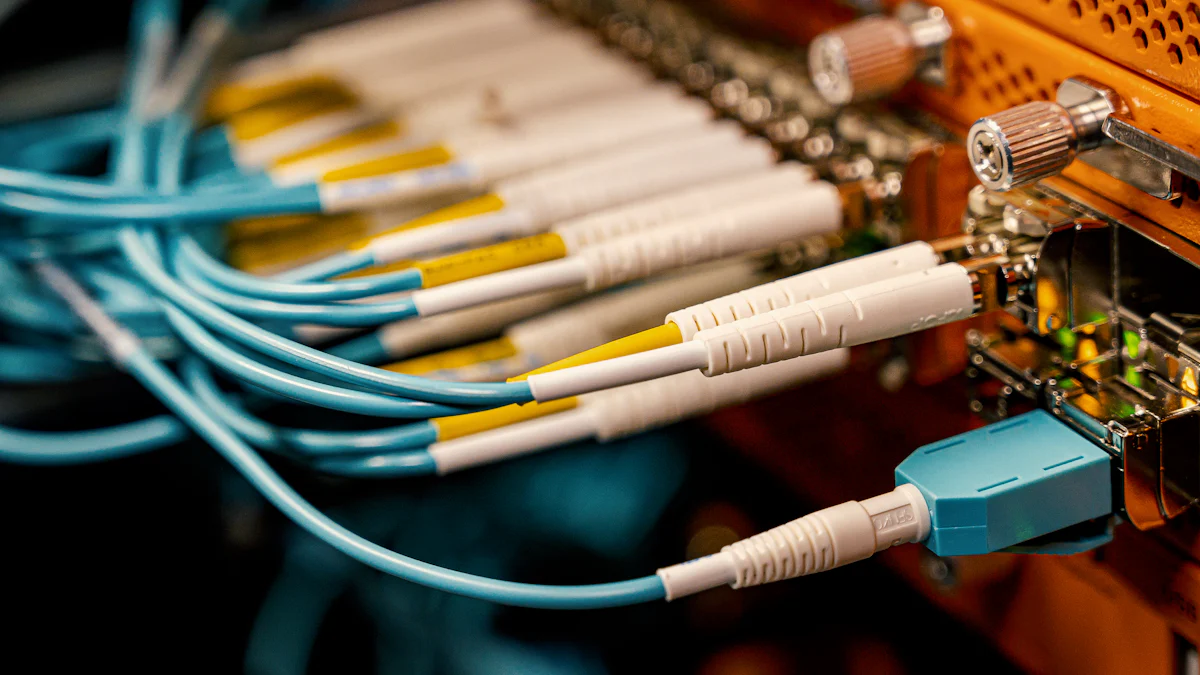

Simplex Fiber Patch Cable
Characteristics
Simplex fiber patch cables consist of a single optical fiber. The design includes a protective jacket and aramid yarn for strength. These cables offer low insertion loss and high return loss, ensuring efficient data transmission. The connectors, such as SC, LC, or ST, provide secure and stable connections. Simplex cables are available in various lengths and colors, allowing easy identification and management.
Applications
Simplex fiber patch cables are essential in network setups requiring point-to-point connections. Data centers use these cables to link switches and routers. Telecommunications companies deploy simplex cables in central offices to connect equipment. The cables also find applications in medical imaging systems, where precise data transmission is critical. Industrial automation systems use simplex cables to ensure reliable communication between control units.
FTTH Patch Cable
Characteristics
FTTH patch cables connect Optical Network Terminals (ONT) to customer premises equipment. These cables feature a rugged design with a small diameter, typically around 2mm or 3mm. The construction includes a low-smoke, zero-halogen (LSZH) jacket, ensuring safety in indoor environments. The cables offer high flexibility and ease of installation, even in tight spaces. FTTH patch cables maintain low insertion loss and high return loss, ensuring efficient data transmission.
Applications
FTTH patch cables serve as critical components in Fiber to the Home (FTTH) systems. Telecommunications companies use these cables to deliver high-speed internet and other services directly to residential and commercial buildings. Data centers deploy FTTH patch cables to connect various network devices, ensuring reliable and high-speed connectivity. These cables also find applications in smart home systems, providing seamless integration of various connected devices.
Pigtail Patch Cord
Characteristics
Pigtail patch cords consist of a short length of optical fiber with a connector on one end. The other end remains unterminated, allowing for splicing to another fiber. These cords feature a robust design with a protective jacket and aramid yarn for added strength. The connectors, such as SC, LC, or ST, provide secure and stable connections. Pigtail patch cords offer low insertion loss and high return loss, ensuring optimal performance.
Applications
Pigtail patch cords play a vital role in network installations requiring splicing. Data centers use these cords to connect fiber optic cables to equipment, ensuring efficient data transmission. Telecommunications companies deploy pigtail patch cords in central offices to link various network components. Medical facilities use these cords in imaging systems, where precise data transmission is crucial. Industrial automation systems rely on pigtail patch cords for reliable communication between control units.
Understanding the different types of fiber optic cables is essential for selecting the right solution for specific needs. The blog covered Single-Mode Fiber (SMF), Multi-Mode Fiber (MMF), FTTH Fiber Optic Cables, Fiber Optic Ribbon Cables, and Specialty Fiber Optic Cables. Each type offers unique characteristics and applications, making them suitable for various networking environments.
Choosing the right fiber optic cable depends on factors like distance, bandwidth requirements, and installation environment. For example, Single-Mode Fiber (SMF) is ideal for long-distance communication, while Multi-Mode Fiber (MMF) suits short-range, high-speed data transfer. FTTH Patch Cable and Pigtail Patch Cord are crucial in FTTH systems, ensuring reliable connections between customer outlets and ONT equipment.
Staying updated with advancements in fiber optic technology will help in making informed decisions. The industry continues to evolve, offering new solutions that enhance performance and reliability. Investing in the right fiber optic cables ensures a future-proof network capable of meeting growing data demands.
